YOKE® GRADE 100 WELD-ON LIFTING POINTS

■ Manufactured from grade 100 alloy steel, hardened and tempered.

■ Tested to EN1677-1.

■ All load-bearing elements are 100% Magnaflux verified.

■ Traceability of individual forged parts.

■ Proof tested to 2.5 times the working load (WLL).

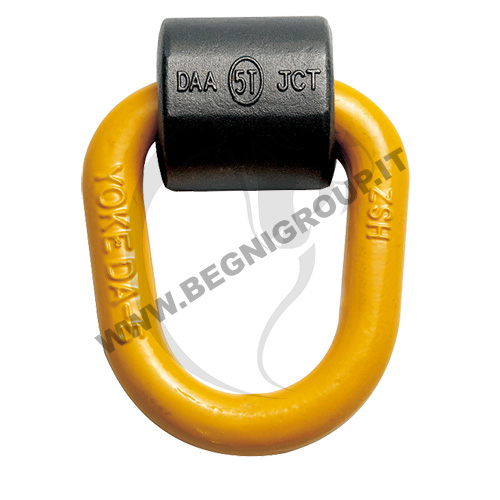

8-0573 WELDING BRACKET Classic Weld-on Point

■ Rotatable through 180°.

■ Capacity range: 1 t – 8 t with safety factor 5.

■ Capacity range: 10 t – 30 t with safety factor 4.

■ Fins designed to facilitate welding.



8-057 WELDING BRACKET WITH SPRING Weld-on Point

■ Rotatable 180°.

■ Load capacities: 1 t – 10 t with safety factor 5.

■ Fins designed to facilitate welding.

■ The spring keeps the bracket at the required angle. The components are assembled in such a way that the spring does not come off or get lost. The spring also reduces noise caused by vibrations.

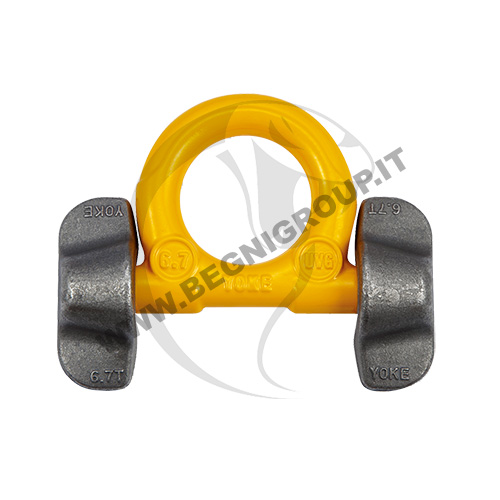

8-082 WELDING BRACKET (DOUBLE BASE) Weld-on Ring

■ Rotatable 180°.

■ DGUV GS-OA-15-04 certified.

■ Load capacities: 4 t – 31.5 t with safety factor 4.

■ The welding block is made of material with excellent welding properties.

■ Slim design with high resistance.

■ The bracket is foldable, thus avoiding the risk of tripping and snagging.

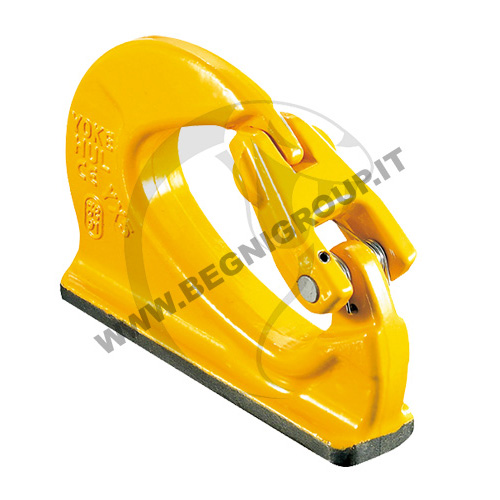

8-081 Weld-on Hook

■ DGUV GS-OA-15-03 certified.

■ WLL: 0.75 t – 15 t with safety factor 5.

■ Fins designed to facilitate welding.
